 Post subject: Carb Photos
 Post Posted: Thu Jul 26, 2012 10:08 pm
Offline

Joined: Thu Jan 29, 2009 10:59 am
Posts: 438
Location: Auburndale, Florida

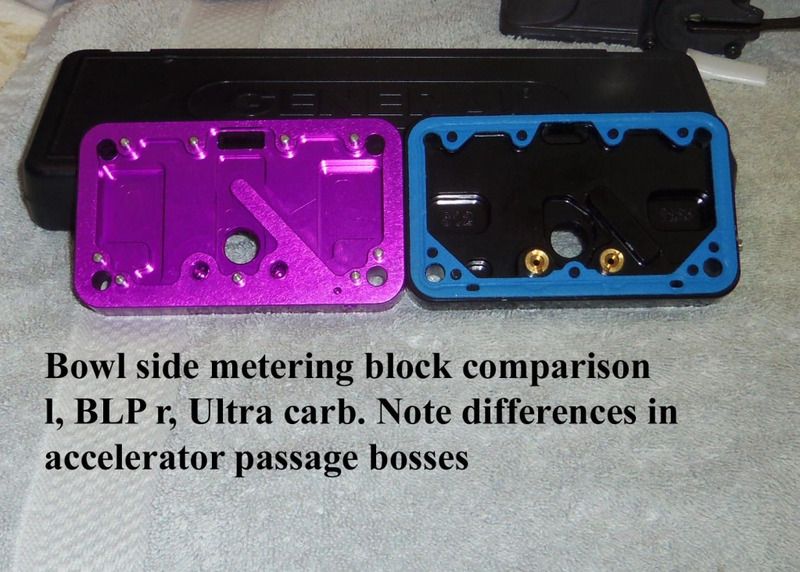

Pics of Ultra carbs I've been in lately.

M/W exits on 650/750 Ultras are .140

I got more images to come as time allows. I also mapped the calibrations on all four sizes, 650, 750, 850, 950. I'll post those also.


Top
 Profile

 Post subject: Re: Carb Photos
 Post Posted: Fri Jul 27, 2012 7:07 am
Offline

Joined: Thu Jan 29, 2009 10:59 am
Posts: 438
Location: Auburndale, Florida

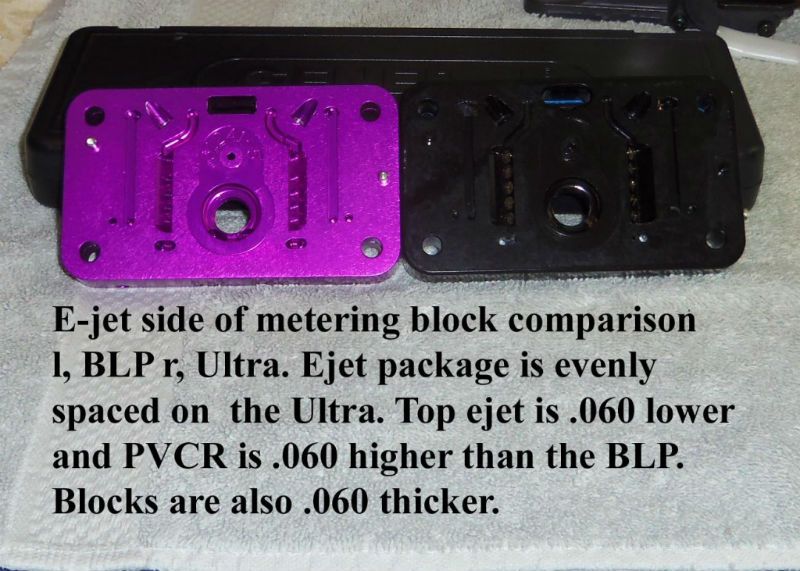

Two more Photos




Top
 Profile

 Post subject: Re: Carb Photos
 Post Posted: Fri Jul 27, 2012 12:41 pm
Offline

Joined: Thu Jan 29, 2009 10:59 am
Posts: 438
Location: Auburndale, Florida
Calibrations.

950U 850U 750U 650U

N&S .120 .120 .120 .120
IJ .038 .035 .036 .032
IAB .070 .067 .073 .070
MJ 92 84 76 70
MAB .032 .034 .036 .040
TSJ none none none .071
PVCR .072 .070 .059 .049
Angle .160 .160 .140 .140
KILL .027 .028 .027 .027
Ejet 1 .029 .029 .029 .029
2 .029 .029 .029 plugged
3 .029 .029 .029 .035
4 plugged plugged plugged plugged
5 .029 .029 .029 .035

All had 30cc pumps. The 850 and 950 had modified stepped downleg boosters with a .436 ID. The 750 and 650 both used unmodified no-stepped boosters with a .382 ID.


Top
 Profile

 Post subject: Re: Carb Photos
 Post Posted: Sun Jul 29, 2012 10:21 am
Offline

Joined: Fri Jul 09, 2010 11:21 pm
Posts: 13
Thanks for taking the time to post the block comparisons and Ultra calibrations. Any idea why they put so much HSAB in them?


Top
 Profile

 Post subject: Re: Carb Photos
 Post Posted: Sun Jul 29, 2012 2:13 pm
Offline
User avatar

Joined: Mon Oct 29, 2007 7:07 pm
Posts: 1422
Location: Florida
treyrags wrote:
Thanks for taking the time to post the block comparisons and Ultra calibrations. Any idea why they put so much HSAB in them?


We are all wondering the same thing... :-


Top
 Profile

 Post subject: Re: Carb Photos
 Post Posted: Sun Jul 29, 2012 5:53 pm
Offline

Joined: Thu Jan 29, 2009 10:59 am
Posts: 438
Location: Auburndale, Florida
You're all welcome.

I also have a lot of detailed photos of a 1290 King Demon I was into a while back. Good pictures for carb junkies like us.

If you all would like I'll post those also.


Top
 Profile

 Post subject: Re: Carb Photos
 Post Posted: Tue Jul 31, 2012 12:00 am
Offline

Joined: Tue Jun 09, 2009 11:43 pm
Posts: 19
Nomad,

I'd like to thank you also for taking the time posting that info. If you can find the time to post anything else, that would be much appreciated!

cheers!


Top
 Profile

 Post subject: Re: Carb Photos
 Post Posted: Tue Jul 31, 2012 7:51 am
Offline

Joined: Thu Jan 29, 2009 10:59 am
Posts: 438
Location: Auburndale, Florida




I have more photos of this King Demon but, these photos are the most important. The rest is stuff we already know or have seen.
