 Post subject: Belly pans
 Post Posted: Fri Dec 23, 2011 11:54 am
Offline
User avatar

Joined: Wed Apr 19, 2006 8:20 pm
Posts: 5852
Location: N.J.
Have to build one as I think it's going to be a lot easier to do service and also last longer than a diaper.
Concerned about it lifting the front of the car if it's on an angle as
the pan on my car hangs below the frame. Also thought of going
on the out side of the frame to..
Going to make it of of .063 aluminum and welding tabs to the frame and using Duz buttons to hold it in place..
Anyone have any idea's would like to here them... =;

_________________
running E85
Best ET 8.07
Best MPH 170.71
Barry


Top
 Profile

 Post subject: Re: Belly pans
 Post Posted: Fri Dec 23, 2011 12:13 pm
Offline
User avatar

Joined: Wed Apr 19, 2006 4:11 pm
Posts: 2749
Location: Shepherdsville, KY
I put a carbon fiber one on mine and I think you asked for pics back then (go figure). I couldn't get good pics back then with the car all together but I have it all apart now. I can stick the pan on and snap some pics over the weekend if you think that will help. A local guy makes them and I can get you some dimensions. I had to shorten mine some to make it fit the small block better but you shouldn't have to.

_________________
Chuck Woloch

Chuck's Automotive
Full line Computech dealer
chucksautomotive@yahoo.com


Top
 Profile

 Post subject: Re: Belly pans
 Post Posted: Fri Dec 23, 2011 3:25 pm
Offline
User avatar

Joined: Wed Apr 19, 2006 4:11 pm
Posts: 2749
Location: Shepherdsville, KY
The local guy said he has a couple of different sizes now but the most popular one he has for a chassis car is 19.5" wide X 25.5" long and 6.5" deep. On mine I had to trim the height to clear different things. He gets $275.00 for these.

_________________
Chuck Woloch

Chuck's Automotive
Full line Computech dealer
chucksautomotive@yahoo.com


Top
 Profile

 Post subject: Re: Belly pans
 Post Posted: Fri Dec 23, 2011 3:47 pm
Offline
User avatar

Joined: Wed Apr 19, 2006 8:20 pm
Posts: 5852
Location: N.J.
That would be great Chuck....
It's 18 1/2 between the rails..

_________________
running E85
Best ET 8.07
Best MPH 170.71
Barry


Top
 Profile

 Post subject: Re: Belly pans
 Post Posted: Thu Dec 29, 2011 6:56 pm
Offline
User avatar

Joined: Wed Apr 19, 2006 4:11 pm
Posts: 2749
Location: Shepherdsville, KY

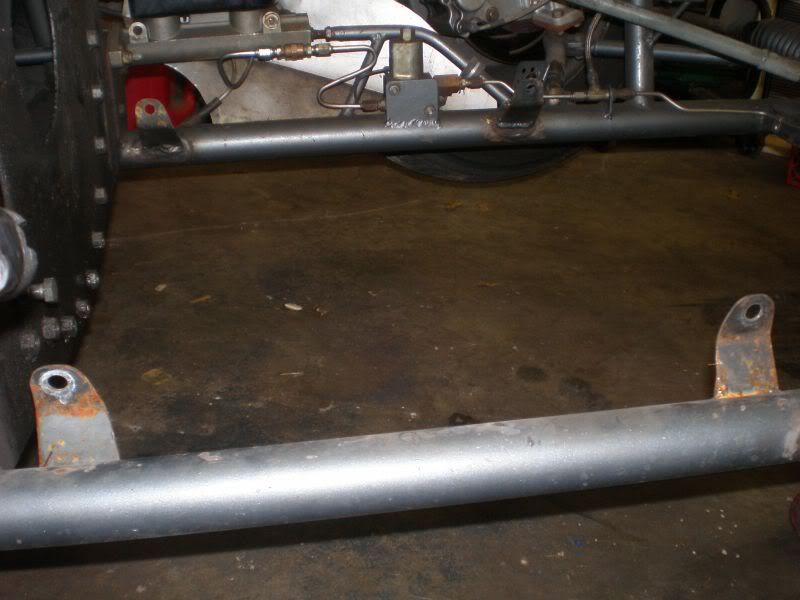

The 1st pics show how I located the tabs to hold the pan. I did this with the engine in the car so the welds are a little sloppy. I plan on cleaning those up and touching up the paint some over the winter.

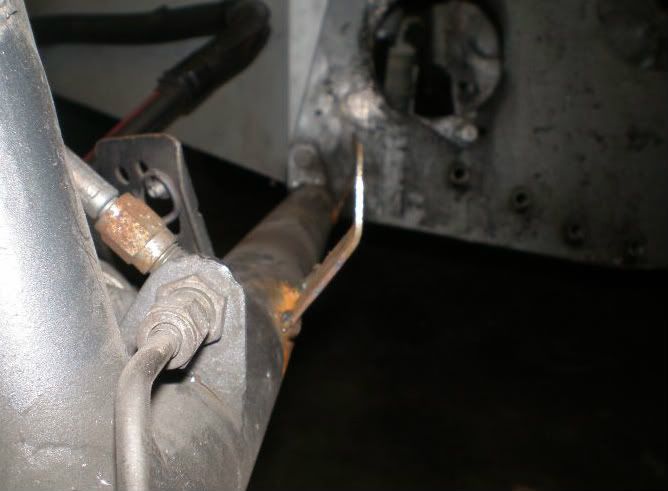

I had to offset the tabs.

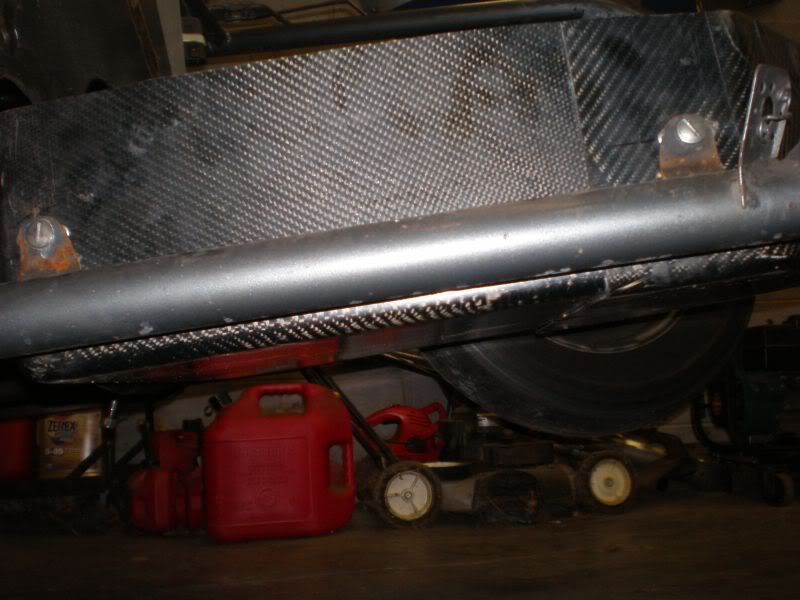

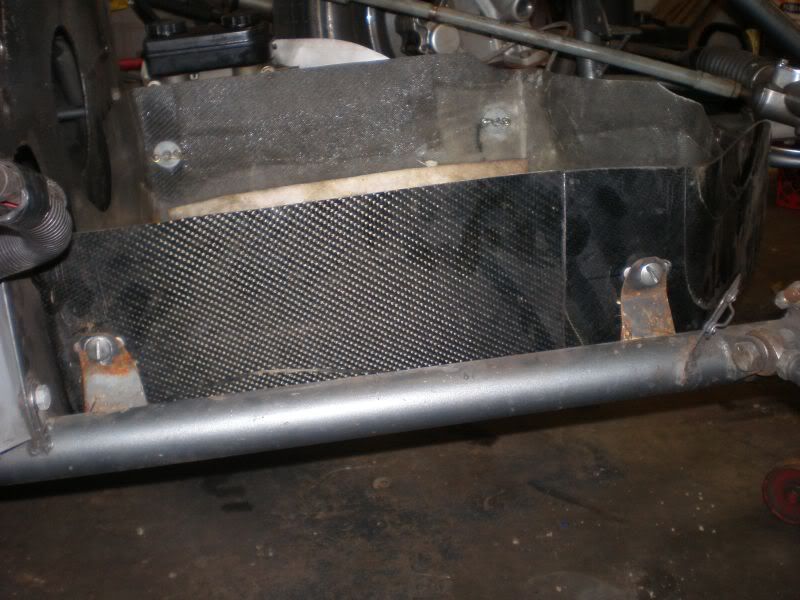

The next two show the pan in place from the side. I put the catch pan just against the oil pan to give the most ground clearance. It also holds the pad in place. The guy that made this one said some guys were putting straps on the bottom to hold the pad in place.

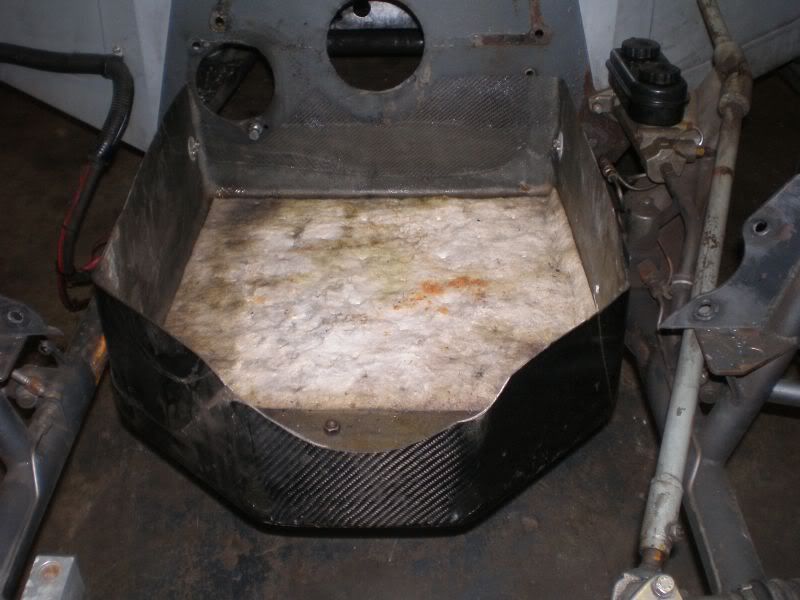

I trimmed the top edge of the pan enough to clear things like the hump on the rear of the oil pan, the balancer and the starter. I left the sides as tall as I could.

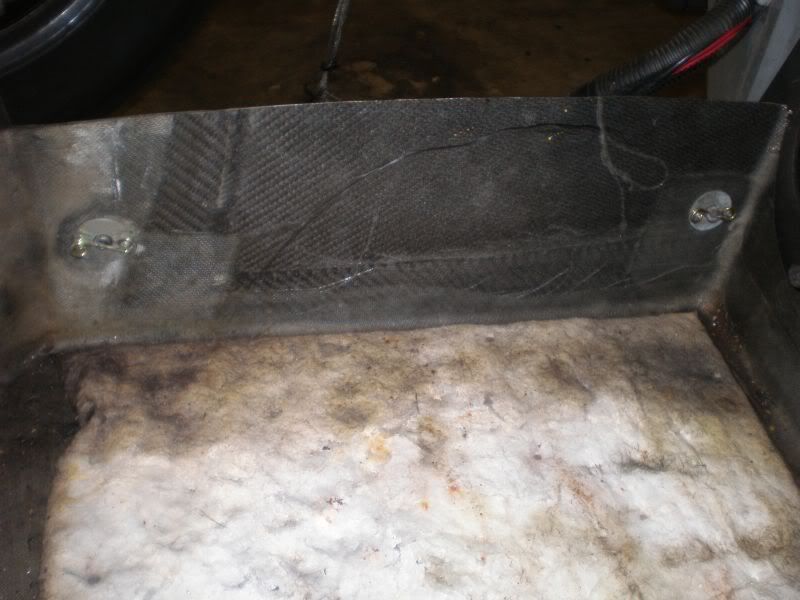

I glued some flat washers to the inside if the bucket before I riveted the dzus springs on so the fasteners wouldn't wear slots in the carbon.

By making the tabs longer and moving the fasteners up it should hold more liquid without leaking through the fastener holes. You have to make sure the fasteners are accessible with everything put together because the bucket has to come off to drain the oil.

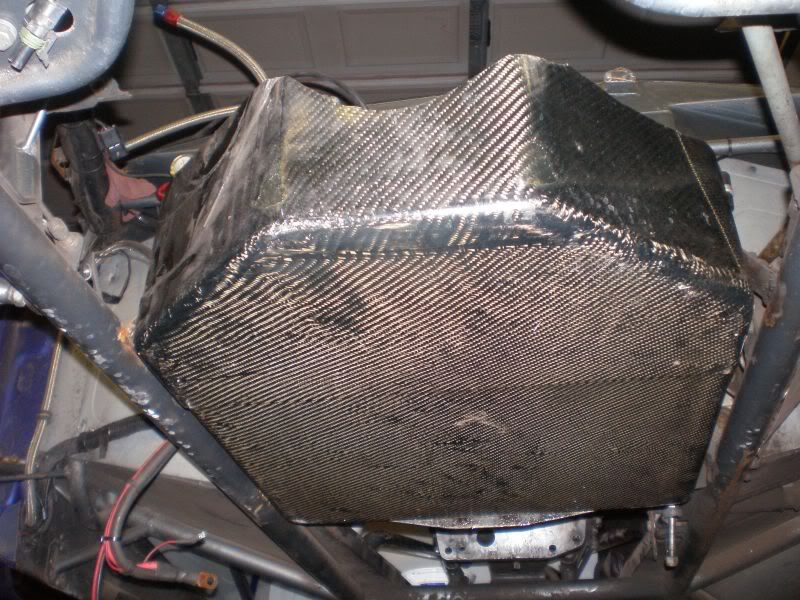

This one is 19.5 inches wide so it fit between my frame rails (20.5" inside) with room to spare. This guy is making these in a couple of different sizes. When I got mine he didn't have a shorter one so mine was cut down a few inches.

_________________
Chuck Woloch

Chuck's Automotive
Full line Computech dealer
chucksautomotive@yahoo.com


Top
 Profile

 Post subject: Re: Belly pans
 Post Posted: Thu Dec 29, 2011 8:08 pm
Offline
User avatar

Joined: Wed Apr 19, 2006 8:20 pm
Posts: 5852
Location: N.J.
Thanks for the pictures Chuck...Can you give him a call and see what other sizes he has
as mine is 18 1/2 between the frame so I need one that's narrower than yours..Or just give me
his phone # so I can call him myself..Thanks for the pictures and that looks like it will
work for me..........

_________________
running E85
Best ET 8.07
Best MPH 170.71
Barry


Top
 Profile

 Post subject: Re: Belly pans
 Post Posted: Thu Dec 29, 2011 9:48 pm
Offline
User avatar

Joined: Wed Apr 19, 2006 4:11 pm
Posts: 2749
Location: Shepherdsville, KY
Are you sure that's 18.5" between the frame rails. That sounds awful narrow for a door car. I think there was a mold for dragsters that would be a lot narrower, I'll check with him tomorrow.

_________________
Chuck Woloch

Chuck's Automotive
Full line Computech dealer
chucksautomotive@yahoo.com


Top
 Profile

 Post subject: Re: Belly pans
 Post Posted: Thu Dec 29, 2011 9:57 pm
Offline
Site Admin
User avatar

Joined: Tue Apr 18, 2006 6:38 am
Posts: 11804
Location: Coming At Ya!
My dragster is 19.5 inches inside the frame rails under the engine? :-k

_________________
Big Boyz Toyz!


Necessity is the plea for every infringement of human freedom. It is the argument of tyrants; it is the creed of slaves.

William Pitt, British Prime-Minister (1759-1806)


Top
 Profile

 Post subject: Re: Belly pans
 Post Posted: Thu Dec 29, 2011 10:08 pm
Offline
User avatar

Joined: Wed Apr 19, 2006 8:20 pm
Posts: 5852
Location: N.J.
Found this...today and yea Chuck 18 1/2
http://www.swracecars.com/store/Dragste ... 5-171.aspx

_________________
running E85
Best ET 8.07
Best MPH 170.71
Barry


Top
 Profile

 Post subject: Re: Belly pans
 Post Posted: Mon Jan 02, 2012 8:14 am
Offline
User avatar

Joined: Wed Apr 19, 2006 8:20 pm
Posts: 5852
Location: N.J.
Chuck any luck with other sizes???

_________________
running E85
Best ET 8.07
Best MPH 170.71
Barry


Top
 Profile

 Post subject: Re: Belly pans
 Post Posted: Mon Jan 02, 2012 8:19 am
Offline
User avatar

Joined: Wed Apr 19, 2006 4:11 pm
Posts: 2749
Location: Shepherdsville, KY
Beretta wrote:
Chuck any luck with other sizes???


I was shut down for the holidays. Today's the first day back in the shop. I will try to talk to him today.

_________________
Chuck Woloch

Chuck's Automotive
Full line Computech dealer
chucksautomotive@yahoo.com


Top
 Profile

 Post subject: Re: Belly pans
 Post Posted: Mon Jan 02, 2012 9:20 am
Offline
User avatar

Joined: Wed Apr 19, 2006 8:20 pm
Posts: 5852
Location: N.J.
Thanks Chuck

_________________
running E85
Best ET 8.07
Best MPH 170.71
Barry


Top
 Profile

 Post subject: Re: Belly pans
 Post Posted: Mon Jan 02, 2012 5:16 pm
Offline

Joined: Thu Jan 29, 2009 10:59 am
Posts: 438
Location: Auburndale, Florida
Barry, my car has no crossmember under the pan. I tired a universal diaper and it was a PITA. Finally it got into the flexplate. I bought a custom made DRE. It fits like a glove. At the Div 2 race in Reynolds it fit so well the inspector couldn't see it from the top of the car. Only the straps and thier hardware gave it away.


Top
 Profile

 Post subject: Re: Belly pans
 Post Posted: Mon Jan 02, 2012 5:52 pm
Offline
User avatar

Joined: Wed Apr 19, 2006 4:11 pm
Posts: 2749
Location: Shepherdsville, KY
I talked the the local guy today. He doesn't have a mold for anything narrower than 19.5" but he said he could split one down the middle and put it back together for around 300 bucks. He said it would be 1 1/2 to 2 weeks before he could get one done.

_________________
Chuck Woloch

Chuck's Automotive
Full line Computech dealer
chucksautomotive@yahoo.com


Top
 Profile

 Post subject: Re: Belly pans
 Post Posted: Mon Jan 02, 2012 5:56 pm
Offline
User avatar

Joined: Wed Apr 19, 2006 8:20 pm
Posts: 5852
Location: N.J.
Bruce, I talked to the diaper man O:) and he has a diaper for my oil pan only thing stopping me was the possible PIA removing it to change the oil and the added heat from it being wrapped from what other
guys have been telling me...So after thinking about it I was going to just make one out of aluminum and may be have 50 bucks in it total... :- ...That carbon one Chuck has alot of bling to it =; =;

_________________
running E85
Best ET 8.07
Best MPH 170.71
Barry


Top
 Profile
